Mini-Split Installation

Cool the Room Your Ducts Can't Reach

Garage, casita, or addition: some spaces never get cold enough on the main system. A ductless install fixes that without opening walls.

No ductwork required
Targets the hot room, not the whole house
Heats in winter too

Common problems

What a Mini-Split Is and When It Fits

A ductless system has an outdoor unit, one or more indoor air handlers, a refrigerant line set, and a condensate drain. It cools and, as a heat pump, heats.

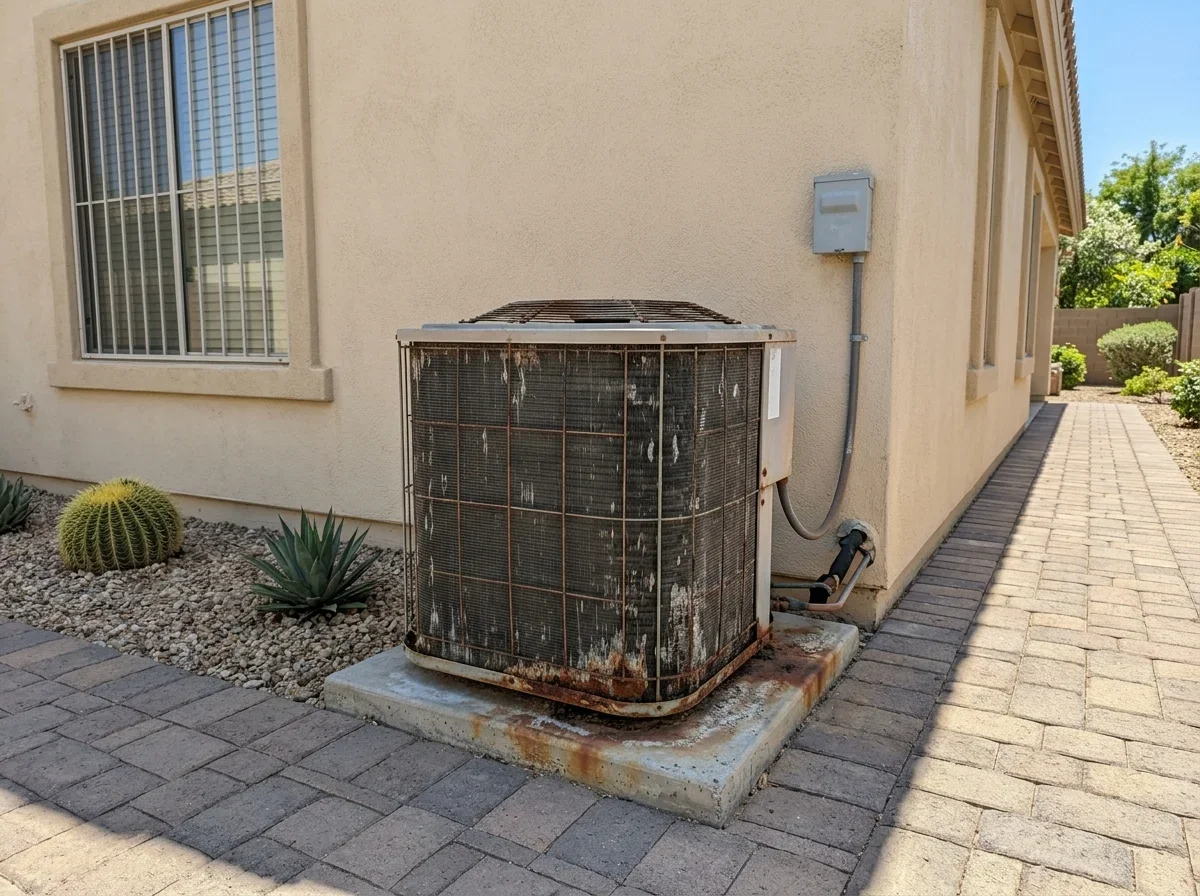

Upgrade your aging outdoor unit with a modern mini-split system

Single-zone serves one room. Multi-zone runs several indoor units from one outdoor unit.

Signs it fits your home

No ducts: your casita, garage, or addition has none, and extending them would be impractical.
One hot zone: a room runs hotter than the rest of the house, and ductless targets it.
Heavy cooling load: Phoenix summer highs average 106°F, so the system runs hard for months.
Looks matter: wall-mounted units are visible. See mini-split vs. central air for that trade-off.

Sound familiar? Your Gilbert garage office stays stuffy no matter how long the main AC runs. A portable unit helped for a summer. Now it can't keep up.

What it costs

What Mini-Split Installation Costs in Phoenix

Price depends on zone count, line-set length, and electrical work. Here are the published ranges for single-zone jobs:

Source	Job	Installed cost
Phoenix permit guide^[1]	Single-zone, 400–600 sq ft garage office	$2,500–$5,500
Scottsdale permit guide^[2]	Single-zone	$3,500–$6,500
Multi-zone systems	Several indoor units	Depends on the job

Permit fees add to that. Phoenix mechanical permits run $100–$350 for most residential installs, plus $75–$150 for a dedicated electrical circuit^[1].

Price at a glance

Permit fees on top of installation

$100 to $350

Mechanical permit$100 to $350
Dedicated electrical circuit$75 to $150

DIY kits don't cover the electrical work.

Price factors

What moves the price

Zone count
Multi-zone systems depend on the job and cost more than single-zone
Line-set length
Longer runs between indoor and outdoor units add cost
Electrical work
A dedicated circuit adds $75 to $150 in permit fees

For the full breakdown, read what mini-split installation costs in Phoenix.

What to expect

How a Mini-Split Installation Works, Step by Step

An installation follows eight steps, summarized here and detailed below.

Step by step

Installation at a glance

Site visit and sizing
The installer measures the space and heat load.
Unit locations
Choose spots for the indoor and outdoor units.
Mounting
Set the outdoor pad or bracket and the indoor plate.
Wall drilling
Cut the opening for the line set.
Line set and wiring
Run refrigerant lines, drain, and control wiring.
Electrical hookup
Connect the dedicated circuit.
Vacuum and leak check
Confirm the lines are sealed before release.
Commissioning
Test the system and learn the controls.

Site visit and sizing: the installer measures the space and heat load.
Unit locations: choose spots for the indoor and outdoor units.
Mounting: set the outdoor pad or bracket and the indoor mounting plate.
Wall drilling: cut the opening for the line set.
Line set and control wiring: run refrigerant lines, drain, and wiring.
Electrical hookup: connect the dedicated circuit.
Vacuum and leak check: confirm the lines are sealed before release.
Commissioning and walkthrough: test the system and learn the controls.

Electrical and code notes

Under the R-39 license scope, a new circuit may be added to an existing panel. A new service panel or sub-panel is excluded, so panel work may need an electrician.

Phoenix code prohibits nonmetallic condensate piping in direct sunlight, such as on roofs.

Ask how your drain will be routed.

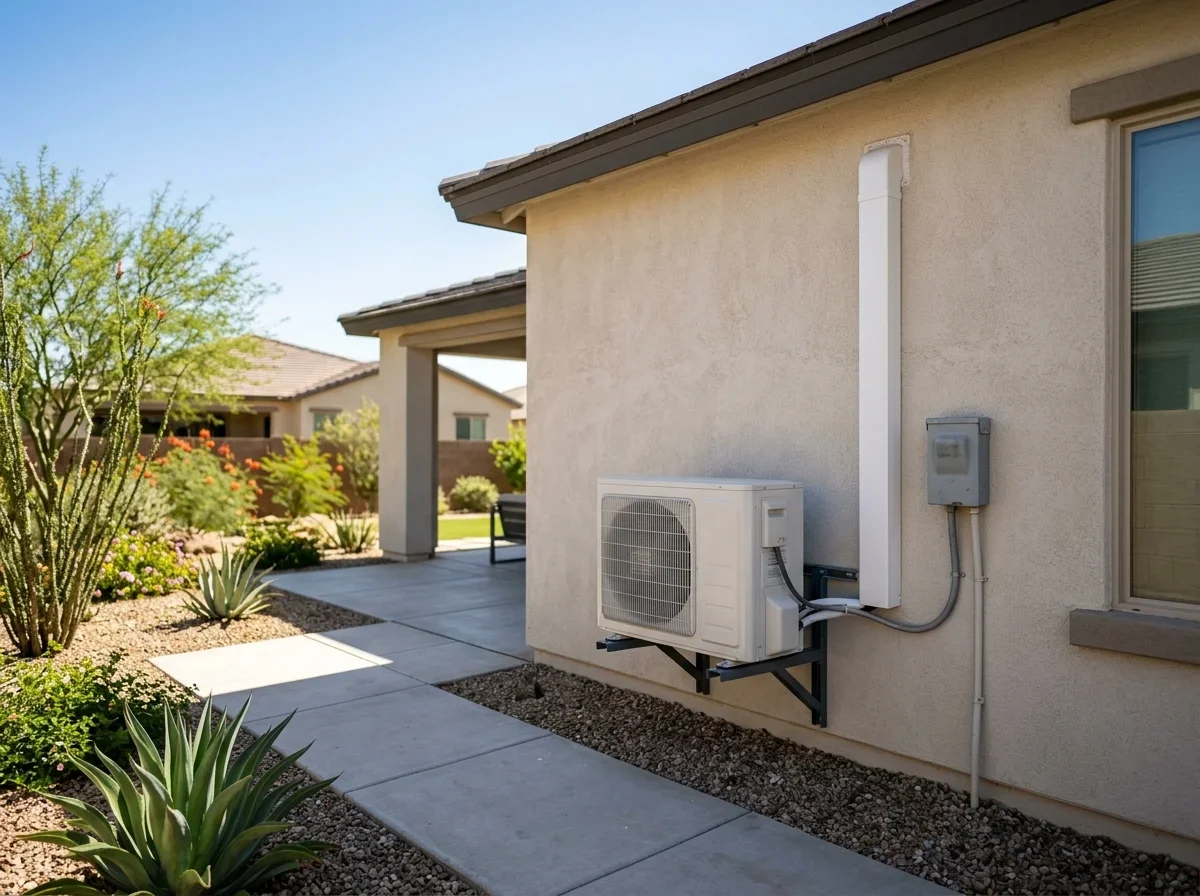

Professional mini-split installation complete for optimal home climate control

Choosing a company

Permits and Hiring a Licensed Installer in Arizona

The Arizona Registrar of Contractors (ROC) licenses HVAC contractors. Cities handle permits, not trade licenses.

Look up the contractor on the ROC Contractor Search and confirm the license is active. Our guide to verifying an HVAC contractor's license walks through it.
Confirm the class covers the work: R-39, R-39R, or CR-39. C-39 and C-58 are commercial.
Call the number on the ROC record.
Ask which city permit rule applies. Scottsdale requires a Mechanical Permit for installs^[2], and Mesa asks for an ROC number.
Get a written contract with the license number and dates, and pay the company named in it.
Ask for proof of insurance. A license alone doesn't guarantee coverage.

Compare licensed installers serving Mesa, Chandler, Tempe, and Scottsdale below. Use this checklist of questions to ask each contractor before you hire.

Checklist

Questions to ask each contractor

0 of 7 ticked

Is the ROC license active on the Contractor Search?
Does the license class cover the work (R-39, R-39R, or CR-39)?
Does the phone number match the ROC record?
Which city permit rule applies to this install?
Is the license number and dates in a written contract?
Is the company I pay the one named in the contract?
Can you show proof of insurance?

Tick them off as you go. Nothing is saved or sent.

Questions Valley homeowners ask

A split AC installation involves mounting the indoor air handler, mounting the outdoor condenser on a level pad, running a line set and power and control wiring, pulling a vacuum, and charging the system. In Arizona, this work should be done by a licensed contractor, since refrigerant handling requires EPA Section 608 certification and the work generally requires an ROC C-39 or R-39 license.

The general process includes:

Site planning - Choose an indoor wall location with clearance for airflow and drainage, and an outdoor spot with shade, clearance, and a level concrete or composite pad.
Mounting the indoor unit - Secure the mounting plate level, drill a wall sleeve, and hang the air handler with a condensate drain sloped toward the outside.
Mounting the outdoor unit - Set the condenser on an elevated pad or wall brackets to keep it above dust and monsoon runoff.
Running the line set - Connect the refrigerant lines, insulate them, and run the power and communication wiring.
Evacuating and charging - Pull a deep vacuum with a micron gauge to remove moisture, then open the valves and verify the refrigerant charge.
Testing - Confirm temperature split, airflow, drainage, and electrical connections before commissioning.

DIY installation can void manufacturer warranties and may not meet local code, so professional installation is strongly recommended.

Do I Need a Permit. "Complete Guide to HVAC Permits in Phoenix, AZ (2026)." https://www.doineedapermit.org/permits/hvac/phoenix-az. Accessed October 16, 2026.
Do I Need a Permit. "Complete Guide to HVAC Permits in Scottsdale, AZ (2026)." https://www.doineedapermit.org/permits/hvac/scottsdale-az. Accessed October 16, 2026.
